Component list

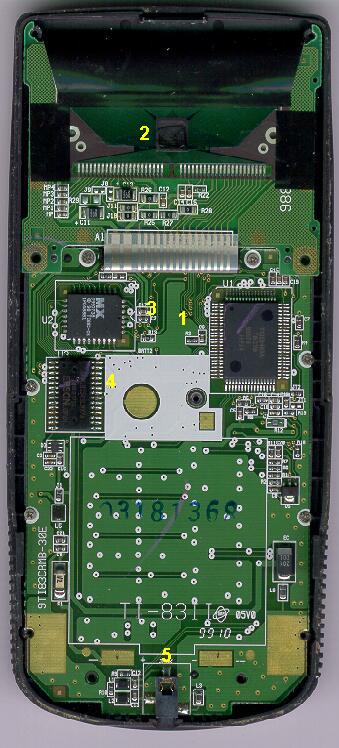

This is a small list of the primairy components of the TI-83:

CPU: Zilog Z80 (8MHz, running at 6MHz) (1)

LCD Driver: Toshiba T6A04 (2)

LCD Display: 96*64 Pixels, monochrome

RAM: 32KB (4)*

ROM: 256 KB (3)*

Keypad: with 50 keys

Link port: to communicate with other TI's or a PC(5)


Click here for a HUGE picture of the TI-83 internals (517 KB).
* Thanks to Chris Morris for pointing out some mistakes in the labeling.
